Hardware SDK Core Interface Notes

This guide covers the common calling methods of UKey Wallet Hardware SDK. From here you can learn how to obtain the device ID, how requests are executed serially, how to respond to UI events, and the common requirements for inputs and error handling of different link interfaces.

Quick Flow

• Call form: In examples, the SDK entry is usually referenced as ukeySdk, so calls look like ukeySdk.method(connectId, deviceId?, params) and return Promise<{ success, payload }>; inspect success before using payload.
• Device identification: connectId from searchDevices, used to locate the connection; deviceId from getFeatures, used to confirm the current wallet status. The BLE scenario usually must be passed in deviceId, and the WebUSB scenario is also preferred.
• Interaction event: The application entrance subscribes to UI_EVENT once. uiResponse is only called for events that require user input such as PIN, Passphrase, Bootloader device selection, etc.
• Link Validation: HD Path is verified by chain; hidden wallet scenarios use initSession + passphraseState; requests on the same device remain serial to avoid mutual preemption at the transport layer.

const opResult = await ukeySdk.evmGetAddress(connectId, deviceId, {
  path: "m/44'/60'/4'/0/1",
});

if (!opResult.success) throw new Error(opResult.payload.error);
console.log(opResult.payload.address);

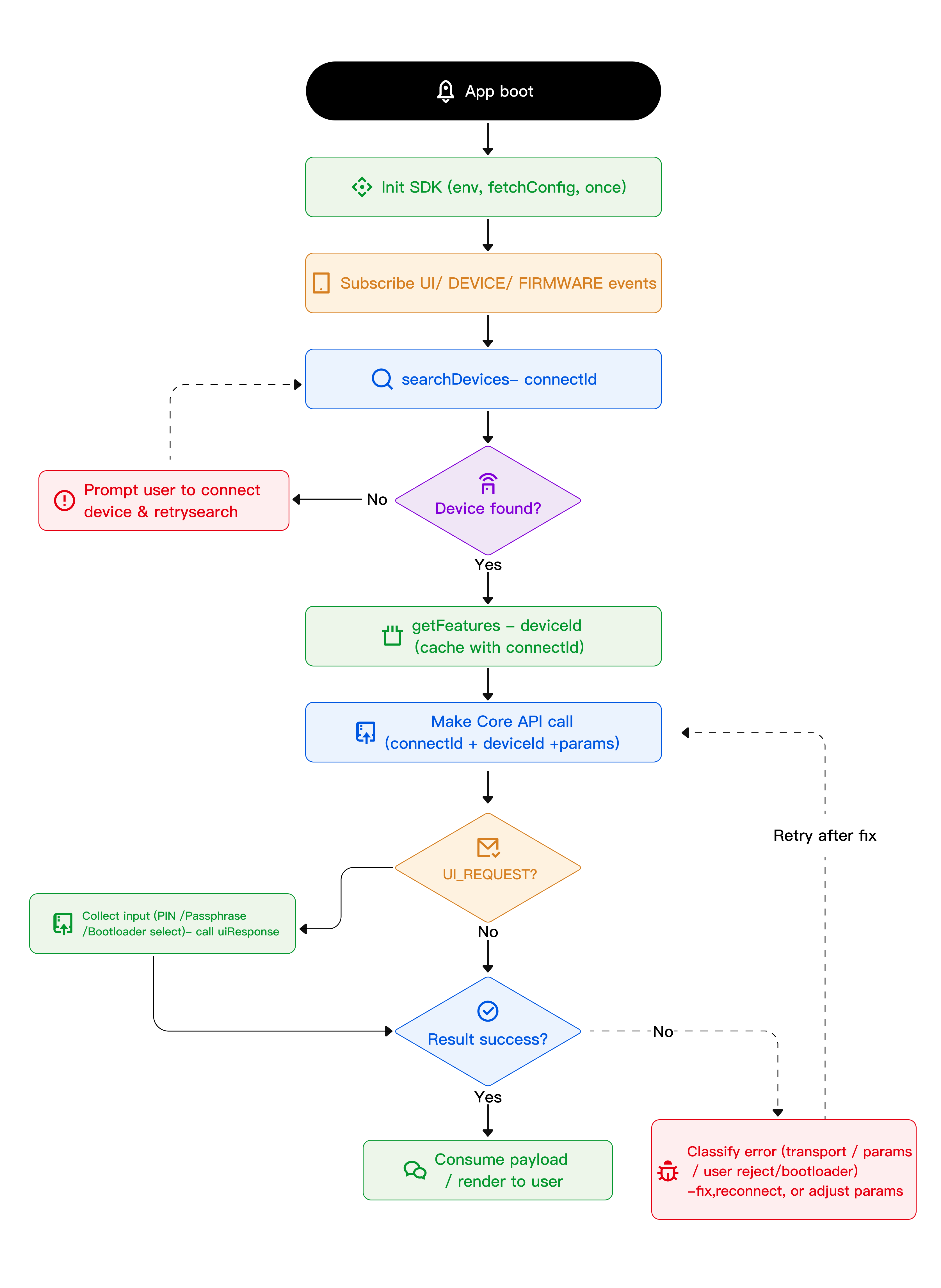

Flow Diagram

Core Identity and Environment

Label	Purpose	Origin	Remarks
connectId	Connection identifier, used to route requests to specific devices	searchDevices()	The same device usually remains stable; WebUSB/Bridge corresponds to the serial number in most cases; BLE uses system layer identification (Android MAC / iOS UUID).
deviceId	Current wallet status identifier	getFeatures(connectId)	Changes after device reset, wipe, restore, or reseed; sensitive operations can be used to avoid requests being sent to the wrong wallet.

• Cache connectId and deviceId in pairs; when DeviceCheckDeviceIdError appears or the user restores the device or switches devices, call getFeatures again.
• SDK related packages need to be of the same version: @ukeyfe/hardware-common-connect-sdk, @ukeyfe/hardware-core, @ukeyfe/hardware-shared and should match the firmware and Bridge capabilities.
• WebUSB requires HTTPS and user gestures; React Native BLE requires Bluetooth and platform permissions; the lowlevel environment requires the host to implement 64-byte frame transmission and reception by itself.
• Only some firmware interfaces are available in Bootloader mode; when using Bridge, please confirm that Bridge is running and the port is not occupied by other programs.

ID Requirements

ID Scope	Purpose	Common Calls
🟢 No identification required	SDK initialization, configuration, event management	init on/off searchDevices getLogs dispose uiResponse
🟡 Just connectId	Device management, status query, firmware operation	getFeatures getPassphraseState cancel deviceSettings deviceReset
🔵 Requires connectId + deviceId	Blockchain signature, address derivation, encryption and decryption	evmSignTransaction btcSignTransaction solanaSignMessage allNetworkGetAddress

Suggested Order

Organize requests in a fixed order: Initialize SDK → Search for devices → Read device information → Subscribe to UI events → Perform specific operations → Release or clean up resources.

import ukeySdk, {
  UI_EVENT,
  UI_REQUEST,
  UI_RESPONSE,
} from "@ukeyfe/hardware-common-connect-sdk";

// 1. Initialize the SDK once at app startup
await ukeySdk.init({ env: "webusb", fetchConfig: true, debug: false });

// 2. Query the currently connected availableDevices
const availableDevices = await ukeySdk.searchDevices();
if (!availableDevices.length) throw new Error("No device");
const [{ connectId }] = availableDevices;

// 3. Read device details (mandatory for BLE, preferred for WebUSB)
const featureInfo = await ukeySdk.getFeatures(connectId);
const deviceId = featureInfo?.payload?.device_id;

// 4. Start listening for UI events
ukeySdk.on(UI_REQUEST.REQUEST_PIN, () => {
  // Present the PIN UI, then call uiResponse after collecting input
});
ukeySdk.on(UI_REQUEST.REQUEST_PASSPHRASE, () => {
  // Note: Show the passphrase prompt
});

// 5. Run a chain action (EVM signing is used here as the example)
await ukeySdk.evmSignTransaction(connectId, deviceId, {
  path: "m/44'/60'/4'/0/1",
});

Call reminder: Queue hardware requests for the same device instead of running them in parallel; after the user switches devices, read getFeatures again; detach event listeners before the page is destroyed; call ukeySdk.dispose() only when you really want to reset the transport context or close the SDK session.

Input Notes

Shared Request Fields (CommonParams)

Field	Purpose	Typical use
initSession?: boolean	Actively establish a hardware session, which can be used with the Passphrase state	Warm up the session before first operation to reduce subsequent interactions
passphraseState?: string	Hide wallet session ID	Carry when using the same hidden wallet continuously
useEmptyPassphrase?: boolean	Force the use of standard wallets	Avoid entering a hidden wallet by mistake
deriveCardano?: boolean	Derive Cardano related data in advance	First Cardano operation in session
retryCount? / pollIntervalTime? / timeout?	Adjust polling and timeout strategies	When BLE or network status is unstable
detectBootloaderDevice?: boolean	Return quickly when bootloader device is detected	Guide the user to exit the bootloader
skipWebDevicePrompt?: boolean	Skip WebUSB selection popup	Reuse an authorized WebUSB device
keepSession?	Better avoid continuing to use	Prefer using session and passphrase state instead

Combination example:

// Hidden wallet + sequential calls, so the user is not prompted again and again
const sessionOptions = {
  initSession: true,
  keepSession: true,
  passphraseState: "hidden-wallet-id",
};

await ukeySdk.evmSignMessage(connectId, deviceId, {
  path: "m/44'/60'/4'/0/1",
  messageHex,
  ...sessionOptions,
});

Transport Differences

Transport mode	Common entry point	Key difference	Best suited for
WebUSB	env: "webusb" + @ukeyfe/hardware-common-connect-sdk	Pure browser access, no native bridge required; depends on HTTPS and a user gesture	Web sites, admin consoles, browser DApps
React Native BLE	env: "react-native" + @ukeyfe/hardware-ble-sdk + @ukeyfe/hardware-transport-react-native	Needs BLE native modules and Platform permissions; RN handles scan/connect/send/receive	Pure React Native apps
iOS native low-level	env: "lowlevel" + WKWebViewJavascriptBridge + CoreBluetooth	JS stays in WebView while native handles BLE and bridges results back	iOS native shell with a web business layer
Android native low-level	env: "lowlevel" + WebView + JSBridge + Nordic BLE	JS also stays in WebView while Android handles pairing, connection, notifications, and replies	Android native shell with a web business layer

These transports share the same chain API call shape; the differences are mainly in initialization, permission requirements, and transport implementation.

Common Combinations

• Web app + WebUSB: the lightest path for direct browser-to-device access.
• React Native app + BLE: best for pure RN projects that need native BLE support.
• iOS native shell + WebView + CoreBluetooth: keep the web business layer while native owns BLE.
• Android native shell + WebView + Nordic BLE: similar to the iOS setup, with Android hosting the web page.
• Hidden wallet continuous calls + any transport: pair initSession + passphraseState to reduce repeated prompts.

Code Sample

// WebUSB
await ukeySdk.init({ env: "webusb", fetchConfig: true, debug: false });

// React Native BLE
await ukeySdk.init({ env: "react-native", fetchConfig: true, debug: __DEV__ });

// iOS / Android native low-level integration
await ukeySdk.init({ env: "lowlevel", debug: true });

HD Path Rules

path supports string or array form: path: string | number[]. Most chains follow the BIP44 idea, and different curves have different requirements for path hardening; for instance, Solana, NEAR, etc. ed25519 chains usually require fully hardened paths.

Path cheat sheet:

• EVM: m/44'/60'/6'/0/2, the most common standard EVM account path.
• BTC (Nested SegWit): m/49'/0'/0'/0/0; Native SegWit usually shifts to 84'.
• Solana: m/44'/501'/3'/0', and ed25519 chains like this usually require full hardening.
• NEAR: m/44'/397'/0'/0'/1', also fully hardened.
• Cardano: m/1852'/1815'/1'/0/1, with staking paths often using .../2/0.
• TRON: m/44'/195'/1'/0/1, which is fairly close to an EVM-style layout.

When passing a path as an array, hardened levels need the 0x80000000 marker, for example: [(44 | 0x80000000) >>> 0, (0 | 0x80000000) >>> 0, 0x80000000, 0, 0].

If a device returns "forbidden path", typically the path length, coin type, or hardening flag does not meet the chain's requirements. Please refer to the path rules in the corresponding chain API page.

Event Notes

The SDK will pass the device status and user interaction requirements to the application through events. Commonly used channels are as follows:

Channel	Purpose
UI_EVENT	User interaction prompts (PIN, Passphrase entry, etc.)
DEVICE_EVENT	Device status changes (connection, disconnection, function update, etc.)
FIRMWARE_EVENT	Firmware upgrade information

uiResponse is only called by UI_REQUEST that needs the application to echo the incoming content. Pure prompt events can be used to update the interface. In a multi-device scenario, please route the prompt to the corresponding device based on the device ID in the event.

UI Requests With Reply

Request kind	When triggered	Reply
REQUEST_PIN	Protected call while the device is locked	UI_RESPONSE.RECEIVE_PIN (software blind input or hardware-side entry)
REQUEST_PASSPHRASE	Enter the hidden-wallet passphrase in the app	UI_RESPONSE.RECEIVE_PASSPHRASE (value, passphraseOnDevice, attachPinOnDevice, save)
REQUEST_PASSPHRASE_ON_DEVICE	Enter the hidden-wallet passphrase on the device	UI_RESPONSE.RECEIVE_PASSPHRASE（passphraseOnDevice: true）
REQUEST_DEVICE_IN_BOOTLOADER_FOR_WEB_DEVICE	Bootloader device selection	UI_RESPONSE.SELECT_DEVICE_IN_BOOTLOADER_FOR_WEB_DEVICE（deviceId）

Display-Only UI Requests

Request kind	Purpose
REQUEST_BUTTON	Ask for confirmation on the device
DEVICE_PROGRESS	long-running progress
FIRMWARE_PROCESSING / FIRMWARE_PROGRESS / FIRMWARE_TIP	Firmware upgrade or processing state
BLUETOOTH_PERMISSION / LOCATION_PERMISSION	BLE permission notice
BOOTLOADER / REQUIRE_MODE / NOT_INITIALIZE / FIRMWARE_NOT_SUPPORTED	Mode / support hints

Key Device/Firmware Events

Device State

• CONNECT: Device is connected and available, refresh the list and auto-select it.
• DISCONNECT: Device unplugged or BLE disconnected, invalidate the session and prompt to reconnect.
• ACQUIRE: Transfer session starts, block concurrent requests and mark the device as busy.
• RELEASE: Transfer session ends, allow the next queued request.
• CHANGED: Function state changes, such as after unlocking; re-run getFeatures and refresh the cached deviceId.
• USED_ELSEWHERE: A transport conflict is detected, prompt the user to close other apps or Bridge.
• UNREADABLE: Permission or driver exception, prompt the user to re-authorize or check the driver.

Interaction Prompts

• BUTTON: The device is waiting for confirmation, so show "Please confirm on device" in the UI.
• PIN: The device is waiting for PIN entry, so keep the PIN input flow active.
• PASSPHRASE: The device is waiting for a software passphrase, so keep the passphrase input flow active.
• PASSPHRASE_ON_DEVICE: The device is waiting for on-device passphrase entry, so prompt the user to type it on the device.
• SELECT_DEVICE_IN_BOOTLOADER_FOR_WEB_DEVICE: Bootloader device selection is in progress, so keep the selector open until it finishes.

Firmware Messages

• FEATURES: Capability snapshot, used for caching device capabilities.
• SUPPORT_FEATURES: Support matrix snapshot, used for caching compatibility data.
• RELEASE_INFO: New firmware information, prompt for upgrade at a safe moment.
• BLE_RELEASE_INFO: New BLE firmware information, prompt for upgrade at a safe moment.

Event Handling Sample

import ukeySdk, {
  UI_EVENT,
  UI_REQUEST,
  UI_RESPONSE,
} from "@ukeyfe/hardware-common-connect-sdk";

const routeUiRequest = (uiEvent: any) => {
  switch (uiEvent.type) {
    case UI_REQUEST.REQUEST_PIN:
      promptForPin(({ value }) =>
        ukeySdk.uiResponse({
          type: UI_RESPONSE.RECEIVE_PIN,
          payload: value,
        }),
      );
      return;
    case UI_REQUEST.REQUEST_PASSPHRASE:
      promptForPassphrase(({ value, onDevice, save }) =>
        ukeySdk.uiResponse({
          type: UI_RESPONSE.RECEIVE_PASSPHRASE,
          payload: {
            value,
            passphraseOnDevice: onDevice,
            attachPinOnDevice: false,
            save,
          },
        }),
      );
      return;
    case UI_REQUEST.REQUEST_DEVICE_IN_BOOTLOADER_FOR_WEB_DEVICE:
      presentDeviceChoices((deviceId) =>
        ukeySdk.uiResponse({
          type: UI_RESPONSE.SELECT_DEVICE_IN_BOOTLOADER_FOR_WEB_DEVICE,
          payload: { deviceId },
        }),
      );
      return;
    default:
      console.log("UI event received", uiEvent.type, uiEvent.payload);
  }
};

ukeySdk.on(UI_EVENT, routeUiRequest);

Safe Input

PIN Input

• UKey Core 26: Only supports device-side input
• UKey Lite 24 / Lite 25: Supports blind input mode, but use device-side input first

const PIN_KEYPAD_MAP = ["7", "8", "9", "4", "5", "6", "1", "2", "3"];
const keypadSlot = 1;

ukeySdk.uiResponse({
  type: UI_RESPONSE.RECEIVE_PIN,
  payload: PIN_KEYPAD_MAP[keypadSlot - 1],
});

Passphrase Input

• Standard Wallet: This is the empty-passphrase path and is usually the default choice.
• Hidden Wallet: Requires a non-empty passphrase, and case differences change the result.

Input method	Params	Security note
Hardware-side entry (preferred)	passphraseOnDevice: true	The password does not pass through the application side, providing the highest security
Software input	{ value, passphraseOnDevice: false, save: true }	Only used within the current session, do not persist clear text
Mandatory standard wallet	useEmptyPassphrase: true	Make it clear not to enter the hidden wallet

Error Handling

Error category	Typical causes	Recommended action
Device (101–118, 200)	Mode error, device busy, device_id mismatch, not initialized	Switch the device back to the correct mode, then reconnect and retry init + getFeatures
IFrame (300–305)	Not init, loading/timed out/intercepted	Make sure init is successful and not blocked by CSP/iframe
Method/Firmware (400–418)	Parameter error, firmware upgrade required, disabled path	Verify inputs/HD Path, prompt to upgrade firmware
Transport (600–603)	Transport mode not configured, concurrent calls, protobuf errors	Check env/Bridge, serial calls, align SDK version
Bluetooth (700–722)	scan/permissions/connections/timeouts	Check Bluetooth/location permissions and battery distance, and retry the connection.
Runtime/Bridge (800–821)	PIN/action canceled, Bridge permission/timeout, blind signature closed	Retry or prompt to install/launch Bridge, ensure signing mode
Web device (901–902)	Missing WebUSB/Bluetooth permission, or the selector popup could not open	Request authorization again and make sure HTTPS and a user gesture are available

For complete error definition and payload structure, please refer to HardwareError.ts.

Handling suggestions: Maintain a mapping table from error codes to user prompts within the application, and provide clear operations such as retrying, checking equipment, and upgrading firmware to avoid displaying only the underlying error text.

Read Next

• Transmission adaptation - WebUSB, React Native BLE, iOS/Android underlying access
• Chain API - chain-level interfaces such as address derivation, message signature, transaction signature, etc.
• Migration Guide - Migrating from legacy Bridge access to common-connect
